SYJ-600
电脑控制商业夹封切机

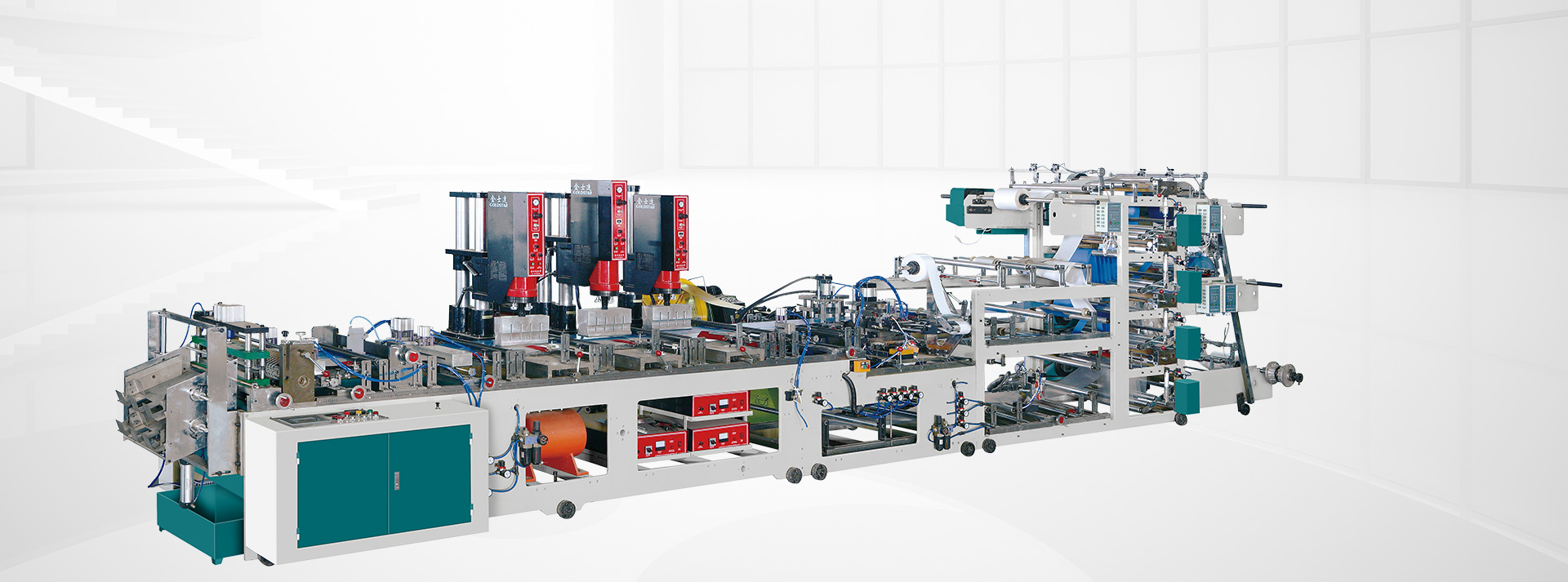

Computerized Business File Folder
Sealing and Cutting Machine(Auto clip structure)
商业夹是一种多层PP片材所制成的产品,而本机是专对此产品而设计的全自动化制造机。
Business file folder is made of multiple layer PP sheet and this machine is a fully automatic machine which is specified used to make this product.
主要技术参数 | Main Technical Parameter | SYJ-600 |
---|---|---|
有效制造速度 | Suitable speed | 30-55张/分钟 |
有效裁切宽度 | Effective width of sealing and cutting | 500毫米 |
适用材料 | Suitable Material | PP片料卷材 |
超声波 | Ultrasonic | 3.2kw×3 |
有效封切厚度 | Effective Thickness of sealing and cutting | 0.1-0.3mm |
自动穿扣结构 | Auto dip structure | 配自动穿扣功能 |
外形尺寸 | Overall Dimension | 800×1700×2100mm(L×W×H) |
工作电压 | Working Voltage | 三相 AC380V 50HZ |
整机功率 | Power | 18kw |
机器重量 | Weight | 约5t |
注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
